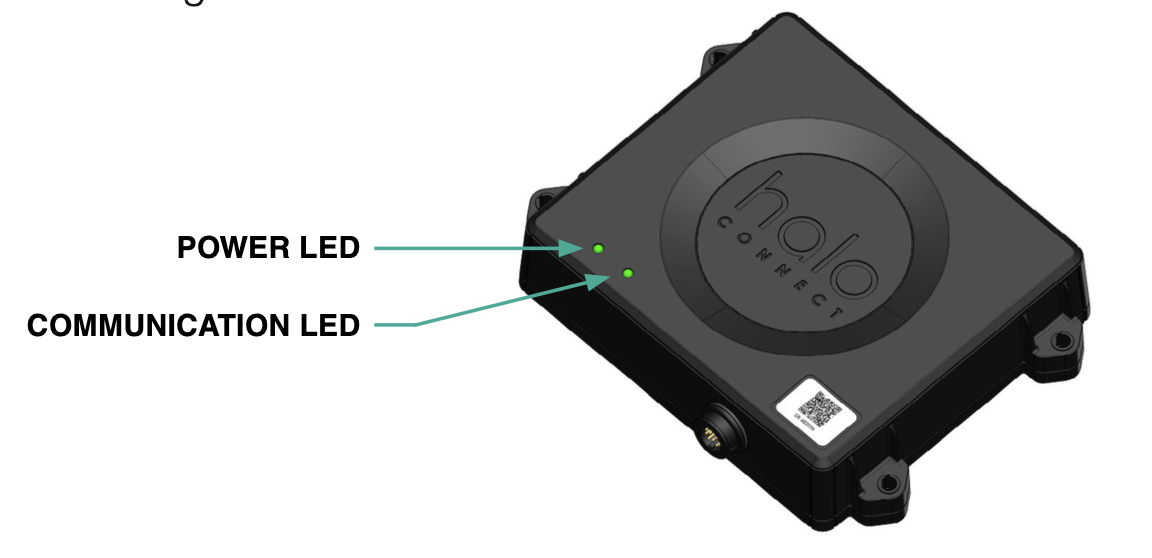

There are two LEDs on the Gateway along the bottom left corner of the unit. The left is the power LED and the right is the Communication LED. Both show different patterns and colors to indicate various statuses and activities of the Gateway. Upon powering the Gateway, both LEDs will flash at 250ms showing a rainbow color.

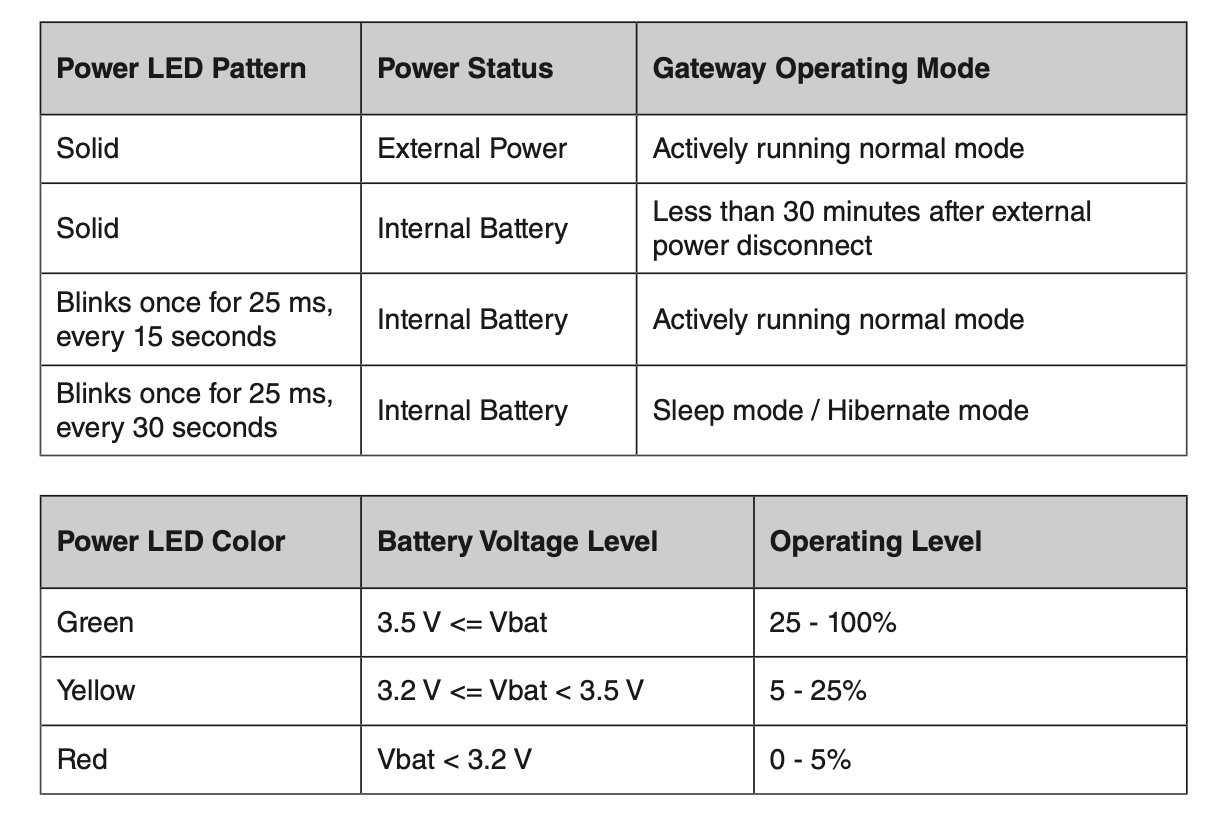

The following table describes activity for the Power LED

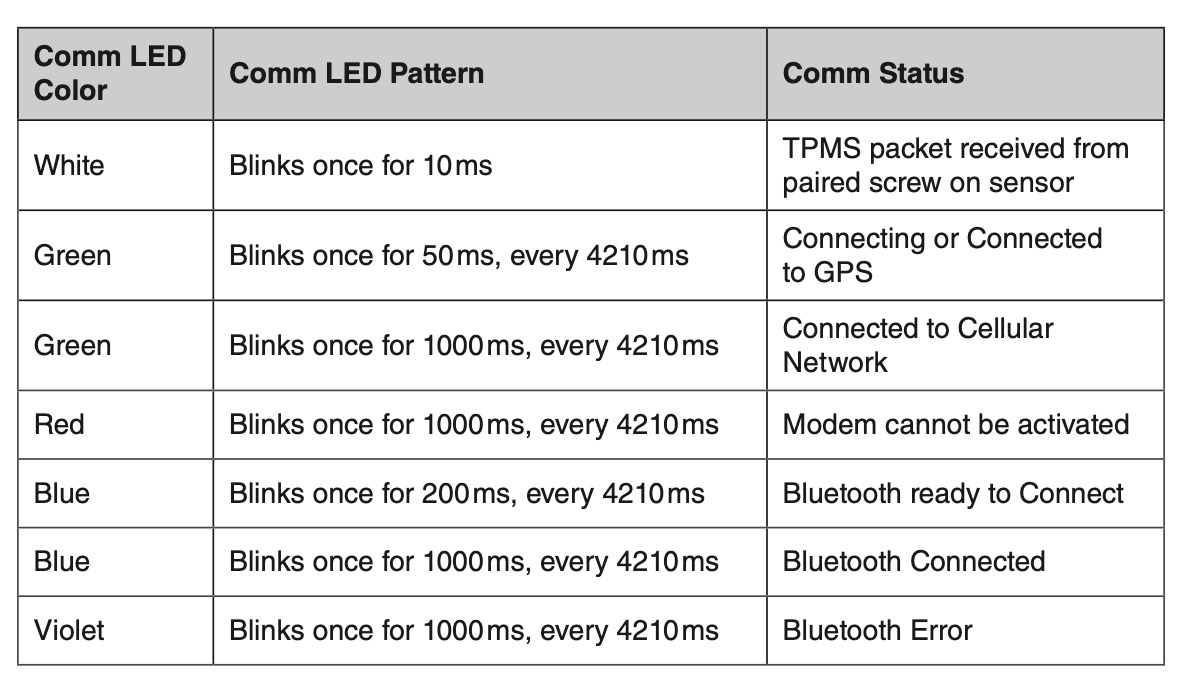

The following table describes LED activity for the Communications LED
