Can I still check tire pressure manually when the Halo installed using a tire gauge?

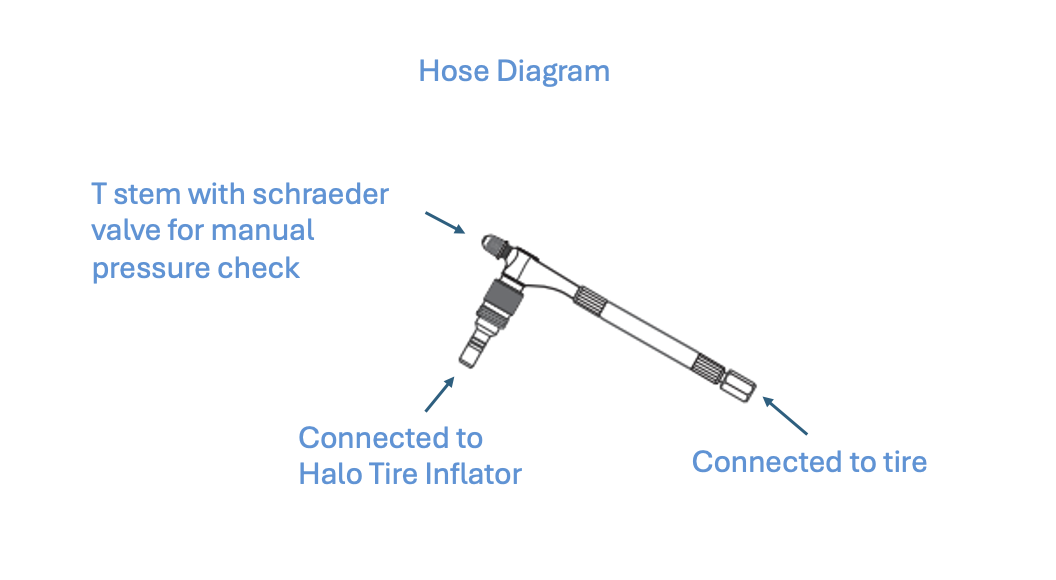

Yes. Tire pressure can be checked manually with the Halo installed. For both Gen 1 and Gen 2 products, there is a Schrader valve at the T stem of the hose that can be used for checking tire pressure with a gauge. The T stem is located on the hose connected to the Halo assembly. See the hose diagram shown below.

If a gateway is installed on the asset, the tire pressure is measured electronically and can be viewed on the Halo Tech App, Halo Drive App, or the web portal.
